Challenge

golf.so - Misc (500 pts)

Story:

Thinking that Bovik’s flags might be hidden in plain sight, you find on your
minimap of the Inner Sanctum that there’s a golf course tucked into the
northeast corner. Before other people catch on to the idea, you sneak off
towards the rolling grassy hills of the golf course.

As you walk up to the entrance, a small man with pointy ears pops up out of the
ground.

“Would you like to play? Right now almost nobody is here, so it’ll only be a
thousand checkers to play a round.“

You wave your hand and send the man the required amount. It’s not a lot of
money, but your balance dwindles to a paltry sum.

“Thanks! Enjoy your game.“

A golf club appears in your hand along with a ball that looks suspiciously too
large. The start of the first hole beckons, and you stride over to tee off.

Problem Details

golf.so.pwni.ng

putter (250 pts)
driver (250 pts)

Foreword

You can skip to section 136 bytes - back to binutils if you want the solution; otherwise you will see the step by step progress leading to this solution.

I want to thank my teammates of team LSE, who helped me a lot for this challenge, and in particular bitz and zuh0.

I’m quite happy about how this challenge turned out for us, because even if we didn’t finished first on the global leaderboard, at least we finished first on a leaderboard :)

The challenge

The challenge consists in a website on which we can upload a .so for x86_64.

The description on the page is as such:

Upload a 64-bit ELF shared object of size at most 1024 bytes. It should spawn a shell (execute execve("/bin/sh", ["/bin/sh"], ...)) when used like

LD_PRELOAD=<upload> /bin/true

The plan

So right ahead I think about how we can operate:

  • Start by writing a small asm stub that execve("/bin/sh")
  • Put the entry point of this stub in the ELF’s constructor
  • Try to trim the ld script for .so
  • Then try to fiddle with strip and objcopy to remove clutter

If those step don’t make an ELF smaller that 1024 bytes, we would be left with no other choice than edit/create the ELF by hand.

Tricking binutils and gcc

First let’s write a simple asm file that does execve("/bin/sh", ["/bin/sh"]):

#include <sys/syscall.h>
f:
mov $0x68732f6e69622f, %rax // "/bin/sh" string
push %rax
mov %rsp, %rdi
push $0
push %rdi
push $0
lea 8(%rsp), %rsi
xor %rdx, %rdx
mov $__NR_execve, %rax
syscall
        .size   f, .-f
        .section        .init_array,"aw"
        .quad   f

And a little makefile to help us:

libgolf.so: ASFLAGS += -fpic
libgolf.so: golf.o

%.so:
        $(LINK.c) -shared $^ $(LDLIBS) -o $@

And for fun let’s look at the size of the library generated:

$ make
cc -fpic   -c -o golf.o golf.S
cc -fpic    -shared golf.o  -o libgolf.so
$ stat -c "%s %n" libgolf.so
15408 libgolf.so

Ok, so we have to reduce the file size more that 15 time; let’s dive in.

We made the assumption that most of the “garbage” will come from our link. This assumption is justified by the difference of size between our .o and our .so. So we took the linker script bundled with our binutils (elf_x86_64.xs) distribution and striped it of everything I didn’t understand/need.

I ended with a linker script as such:

/* Script for -shared */
/* Copyright (C) 2014-2020 Free Software Foundation, Inc.
   Copying and distribution of this script, with or without modification,
   are permitted in any medium without royalty provided the copyright
   notice and this notice are preserved.  */
OUTPUT_FORMAT("elf64-x86-64", "elf64-x86-64",
              "elf64-x86-64")
OUTPUT_ARCH(i386:x86-64)
SECTIONS
{
  /* Read-only sections, merged into text segment: */
  . = SEGMENT_START("text-segment", 0) + SIZEOF_HEADERS;
  .init_array    :
  {
    KEEP (*(SORT_BY_INIT_PRIORITY(.init_array.*)))
    KEEP (*(.init_array EXCLUDE_FILE (*crtbegin.o *crtbegin?.o *crtend.o
*crtend?.o ) .ctors))
  }
}

Trying it:

$ stat -c "%s %n" golf.o # Let's look at the size of our source object
928
$ make -B LDFLAGS=-Wl,-Tlds.lds
cc -fpic   -c -o golf.o golf.S
cc -fpic  -Wl,-Tlds.lds  -shared golf.o  -o libgolf.so
$ stat -c "%s %n" libgolf.so
4688 libgolf.so

We also used some other flags to reduce the file size:

  • -Wl,--build-id=none
  • -nostdlib
$ make  -B LDFLAGS='-Wl,-Tlds.lds -nostdlib -Wl,--build-id=none'
1672 libgolf.so

Also striped our binary and removed useless sections with objcopy:

$ strip libgolf.so
$ stat -c "%s" libgolf.so
1224
$
$ # Those sections are removed as removing them don't make the .so to crash
$ for i in .gnu.hash .init_array .dynstr .dynsym; do
> objcopy --remove-section $i libgolf.so
> stat -c "%s" libgolf.so
> done
1144 .gnu.hash
1064 .init_array
992 .dynstr
920 .dynsym

Nice, challenge finished, isn’t it ? Let’s upload the file…

You made it to level 0: non-trivial! You have 420 bytes left to be considerable.
This effort is worthy of 0/2 flags.

Damn! We have to be under 500 bytes now ?

It’s becoming harder and harder to tweak our tools to make the smallest binary, we may have to craft our library by hand. However there is still one easy way to reduce the ELF’s size: we can trim the end of the binary and pray that it still loads.

$ dd if=libgolf.so of=l.so bs=1 count=500
$ LD_PRELOAD=./l.so /bin/true
sh-5.0$

Thankfully, it still loads, so we’ve made it to the next level. Will our efforts be rewarded by a flag ?

You made it to level 1: considerable! You have 200 bytes left to be thoughtful.
This effort is worthy of 0/2 flags.

Sadly, this dd trick doesn’t work for a size of 300 bytes (on my machine it stops loading if we keep less that 460 bytes). We will need to craft our own binary.

Elf crafting

Let’s look at what we our library before playing with dd in last section:

$ readelf -a libgolf.so
ELF Header:
  Magic:   7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00
  Class:                             ELF64
  Data:                              2's complement, little endian
  Version:                           1 (current)
  OS/ABI:                            UNIX - System V
  ABI Version:                       0
  Type:                              DYN (Shared object file)
  Machine:                           Advanced Micro Devices X86-64
  Version:                           0x1
  Entry point address:               0xb0
  Start of program headers:          64 (bytes into file)
  Start of section headers:          600 (bytes into file)
  Flags:                             0x0
  Size of this header:               64 (bytes)
  Size of program headers:           56 (bytes)
  Number of program headers:         2
  Size of section headers:           64 (bytes)
  Number of section headers:         5
  Section header string table index: 4

Section Headers:
  [Nr] Name              Type             Address           Offset
       Size              EntSize          Flags  Link  Info  Align
  [ 0]                   NULL             0000000000000000  00000000
       0000000000000000  0000000000000000           0     0     0
  [ 1] .text             PROGBITS         00000000000000b0  000000b0
       0000000000000024  0000000000000000  AX       0     0     1
  [ 2] .rela.dyn         RELA             0000000000000118  00000118
       0000000000000018  0000000000000018   A       0     0     8
  [ 3] .dynamic          DYNAMIC          0000000000000130  00000130
       0000000000000100  0000000000000010  WA       0     0     8
  [ 4] .shstrtab         STRTAB           0000000000000000  00000230
       0000000000000024  0000000000000000           0     0     1
Key to Flags:
  W (write), A (alloc), X (execute), M (merge), S (strings), I (info),
  L (link order), O (extra OS processing required), G (group), T (TLS),
  C (compressed), x (unknown), o (OS specific), E (exclude),
  l (large), p (processor specific)

There are no section groups in this file.

Program Headers:
  Type           Offset             VirtAddr           PhysAddr
                 FileSiz            MemSiz              Flags  Align
  LOAD           0x0000000000000000 0x0000000000000000 0x0000000000000000
                 0x0000000000000230 0x0000000000000230  RWE    0x1000
  DYNAMIC        0x0000000000000130 0x0000000000000130 0x0000000000000130
                 0x0000000000000100 0x0000000000000100  RW     0x8

 Section to Segment mapping:
  Segment Sections...
   00     .text .rela.dyn .dynamic
   01     .dynamic

Dynamic section at offset 0x130 contains 12 entries:
  Tag        Type                         Name/Value
 0x0000000000000019 (INIT_ARRAY)         0x230
 0x000000000000001b (INIT_ARRAYSZ)       8 (bytes)
 0x000000006ffffef5 (GNU_HASH)           0xf8
 0x0000000000000005 (STRTAB)             0xf0
 0x0000000000000006 (SYMTAB)             0xd8
 0x000000000000000a (STRSZ)              1 (bytes)
 0x000000000000000b (SYMENT)             24 (bytes)
 0x0000000000000007 (RELA)               0x118
 0x0000000000000008 (RELASZ)             24 (bytes)
 0x0000000000000009 (RELAENT)            24 (bytes)
 0x000000006ffffff9 (RELACOUNT)          1
 0x0000000000000000 (NULL)               0x0

Relocation section '.rela.dyn' at offset 0x118 contains 1 entry:
  Offset          Info           Type           Sym. Value    Sym. Name + Addend
000000000230  000000000008 R_X86_64_RELATIVE                    b0

The decoding of unwind sections for machine type Advanced Micro Devices X86-64
is not currently supported.

No version information found in this file.

Now we need to know what we are going to keep.

Obviously, we need to keep our payload.

We know that we can get rid of the section headers, they are useless in our use case.

We need those 2 program headers.

We can improve here and there in the Dynamic section:

  • Use a DT_INIT entry instead of DT_INIT_ARRAY and DT_INIT_ARRAYSZ + function pointer array
  • DT_GNU_HASH, DT_STRTAB, DT_SYMTAB, DT_STRSZ and DT_SYMENT seem useless, we probably can get rid of them
  • We thought that we needed a reloc for the DT_INIT function pointer, in order to point to the beginning of our payload once relocated, so we kept DT_RELA, DT_RELASZand DT_RELAENT

We thought that we needed a relocation (which was a wrong assumption, as we will see later).

I started writing a program that took our current ELF and rewrote it only keeping the parts we needed, but in the end I changed this code to write an ELF from scratch, as it was simpler.

The expected size of the binary with this is as follow:

1 Ehdr: 64
2 Phdr: 2 * 56 = 112
5 Dyn: 5 * 16 = 80
1 Rela: 24
= 280 + sizeof(payload)

Also, let’s change our payload to something more compact:

#include <sys/syscall.h>

.global payload
payload:
pushq  $__NR_execve
pop    %rax
movabs $0x68732f6e69622f,%rbx
cltd
push   %rbx
push   %rsp
pop    %rdi
push   %rdx
push   %rdi
push   %rsp
pop    %rsi
syscall

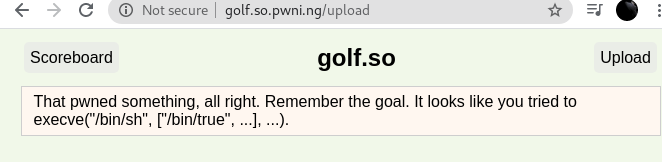

We tried to remove the argv setup for execve, as it is set to the argv used to run the program, and it should be ignored by linux and the shell, but the challenge checks it.

Anyways, this solution should make a binary a bit over 300 bytes, but I’m sure we would be able to optimized it later.

So we tried to write the code and we hit some road blocks:

  • ld.so segfaults in _dl_relocate_object because it wants a DT_STRTAB
  • then it fails because it needs a DT_SYMTAB

Those were quickly found and fixed once we built a ld.so with debug symbols (after spending way too much time trying to reverse ld.so).

So we fixed them, but our binary was still segfaulting… But looking at the coredump, the segfault happens on the jump to our code. In the glibc, we were here in call_init:

    DL_CALL_DT_INIT(l, l->l_addr + l->l_info[DT_INIT]->d_un.d_ptr, argc, argv, env);

See the l->l_addr + l->l_info[DT_INIT]->d_un.d_ptr ? It is adding the address of the library to l->l_info[DT_INIT]->d_un.d_ptr, which has a relocation to point to the beginning of our code.

In other words, l->l_info[DT_INIT]->d_un.d_ptr = code_offset + l->l_addr, so we jump to 2 * l->l_addr + code_offset, which is bogus, instead of l->l_addr + code_offset. Moving the relocation away of the DT_INIT makes our binary work.

This revelation changes lots of things: We don’t need relocations, so we can drop most of our Dynamic entries. We can make a file under 300 bytes, as we now only need DT_INIT and DT_NULL

1 Ehdr: 64
2 Phdr: 2 * 56 = 112
4 Dyn: 4 * 16 = 64
= 240 + sizeof(pyaload)

The code:

#include <elf.h>
#include <unistd.h>

char shellcode[] = {
	0x6a, 0x3b, // pushq  $0x3b
	0x58,       // pop    %rax
	0x48, 0xbb, 0x2f, 0x62, 0x69, 0x6e, 0x2f,
	0x73, 0x68, 0x00, // movabs $0x68732f6e69622f,%rbx
	0x99, // cltd
	0x53, // push   %rbx
	0x54, // push   %rsp
	0x5f, // pop    %rdi
	0x52, // push   %rdx
	0x57, // push   %rdi
	0x54, // push   %rsp
	0x5e, // pop    %rsi
	0x0f, 0x05, // syscall
};

int main() {
	Elf64_Ehdr ehdr = {
		.e_ident = {
			[EI_MAG0] = ELFMAG0,
			[EI_MAG1] = ELFMAG1,
			[EI_MAG2] = ELFMAG2,
			[EI_MAG3] = ELFMAG3,
			[EI_CLASS] = ELFCLASS64,
			[EI_DATA] = ELFDATA2LSB,
			[EI_VERSION] = EV_CURRENT,
			[EI_OSABI] = ELFOSABI_SYSV,
		},
		.e_type = ET_DYN,
		.e_machine = EM_X86_64,
		.e_version = EV_CURRENT,
		.e_ehsize = sizeof(Elf64_Ehdr),
		.e_phentsize = sizeof(Elf64_Phdr),
	};

	ehdr.e_shstrndx = SHN_UNDEF;
	ehdr.e_shoff = 0;
	ehdr.e_shnum = 0;

	ehdr.e_phoff = sizeof(ehdr);
	ehdr.e_phnum = 2;

	Elf64_Phdr phdrs[] = {
		{
			.p_type = PT_LOAD,
			.p_flags = PF_X|PF_W|PF_R,
			.p_align = 0x1000,
		},
		{
			.p_type = PT_DYNAMIC,
			.p_flags = PF_W|PF_R,
			.p_align = 0x8,
		},
	};

	size_t code =
		sizeof(ehdr) +
		sizeof(phdrs);

	size_t code_end = code + sizeof(shellcode);

	phdrs[1].p_vaddr = code_end;
	phdrs[1].p_offset = code_end;
	phdrs[1].p_paddr = code_end;

	enum {
		DYN_INIT,
		DYN_STRTAB,
		DYN_SYMTAB,
		DYN_NULL,
	};

	Elf64_Dyn dyn[] = {
		[DYN_INIT] = {
			.d_tag = DT_INIT,
		},
		[DYN_STRTAB] = { // 4
			.d_tag = DT_STRTAB,
		},
		[DYN_SYMTAB] = { // 5
			.d_tag = DT_SYMTAB,
		},
		[DYN_NULL] = {
			.d_tag = DT_NULL,
		}
	};
	phdrs[1].p_filesz = sizeof(dyn);
	phdrs[1].p_memsz = sizeof(dyn);

	dyn[DYN_STRTAB].d_un.d_val = code_end + sizeof(dyn) - sizeof(*dyn);
	dyn[DYN_SYMTAB].d_un.d_val = code_end + sizeof(dyn) - sizeof(*dyn);

	dyn[0].d_un.d_val = code;
	ehdr.e_entry = code;

	phdrs[0].p_memsz = code_end + sizeof(dyn);
	phdrs[0].p_filesz = code_end + sizeof(dyn);

	write(1, &ehdr, sizeof(ehdr));
	write(1, phdrs, sizeof(phdrs));
	write(1, shellcode, sizeof(shellcode));
	write(1, dyn, sizeof(dyn)
		- sizeof(*dyn) /* we dont need DT_NULL in the file :) */
		- 8 - 2 /* those are 0 bytes at the end for no reason :) */);
}

As you can see, we did some small optimisations, like trimming the '\0' bytes at the end in the ELF.

Once again, we test it:

$ make do_golf
cc     do_golf.c   -o do_golf
$ ./do_golf > ./libgolf.so
$ stat -c "%s" libgolf.so
237
$ LD_PRELOAD=./libgolf.so /bin/true
sh-5.0$

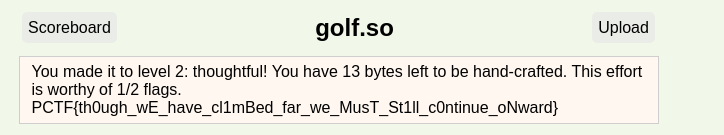

Uploading it to the server gives us this result:

Yes! We have the first flag! But now it is time to get serious.

136 bytes - back to binutils

Let’s recap what do we need:

  • 1 Ehdr
  • 2 Phdr: PT_LOAD and PT_DYNAMIC
  • 4 Dyn: DT_INIT, DT_STRTAB, DT_SYMTAB and DT_NULL
  • and our payload

Now we’re going to write our binary by hand, as we will have to twiddle our bits to the max. We’re going to use our assembler and have lots of fun in hexadecimal.

Each of them is allowed to overlap. The Dynamic section (and our payload, but we don’t use this feature here) is read once loaded in memory, so we can truncate its '\0' bytes if it is at the end of the file. We can leverage this to win 31 bytes because the last entry, DT_NULL is only 0, and both ST_STRTAB and DT_SYMTAB end with 15 bytes of '\0' (7 bytes because the tag is 5 or 6, and 8 because d_val is ignored).

Now we want to look how we can alias our Headers:

Ehdr:

  • The first 24 bytes can’t be changed (e_ident, e_type, e_machine and e_version)
  • e_phoff, e_phentsize and e_phnum are required also
  • the rest is ignored

Both Phdr need their p_type.

For the PT_DYNAMIC Program header:

  • p_vaddr must hold the offset of our Dyn array in the file
  • p_filesz must not be null

For the PT_LOAD Program header:

  • p_flags is required
  • p_offset and p_vaddr must aligned on p_align
  • p_align must be 0 or a power of 2

And finally for our Dynamic section, only DT_INIT has a meaningful d_val.

So my plan is to put the Phdr at offset 24, inside the Ehdr, and the Dynamic section inside the Phdr. Then we put the Dynamic section in the PT_LOAD Phdr and truncate its last '\0' bytes. One source file is worth a thousand word so here is the source file with the aliasing explained in the comments.

ehdr:
.byte 0x7f, 0x45, 0x4c, 0x46 // ei_mag
.byte 0x02 // EI_CLASS
.byte 0x01 // EI_DATA
.byte 0x01 // EI_VERSION
.byte 0x00 // EI_OSABI
.byte 0x00 // EI_ABIVERSION
.byte 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 // EI_NIDENT
.byte 0x03, 0x00 // e_type
.byte 0x3e, 0x00 // e_machine
.byte 0x01, 0x00 // e_version
.byte 0x00, 0x00 // e_version
phdr:
phdr_dyn:
.long 0x02 // p_type = PT_DYNAMIC // e_entry ignored
.long 0x00 // p_offset = 0 // e_entry ignored

.quad phdr - ehdr // p_vaddr = ignored // e_phoff = phdr

.quad dyn - ehdr // p_vaddr = dyn // e_shoff = ignored

next:
// p_paddr = ignored // e_flags = ignored
pop    %rsi
syscall
nop
.byte 0x00, 0x00 // p_paddr = ignored // e_ehsize = ignored

.byte 0x38, 0x00 // p_paddr = ignored // e_phentsize = 0x38
.byte 0x02, 0x00  // p_filesz = ingored* // e_phnum = 2
/*
 * This code aliases over:
 *  - e_shentsize, e_shnum, e_shstrndx
 *  - p_memsz, p_flags, p_align
 * and jumps back to next when we have no more space in the Phdr.
 * We are glad to have so much contiguous space for the big movabs insn
 */
code:
pushq  $0x3b
pop    %rax
movabs $0x68732f6e69622f,%rbx
cltd
push   %rbx
push   %rsp
pop    %rdi
push   %rdx
push   %rdi
push   %rsp
jmp next
phdr_load:
.long 0x01 // p_type = PT_LOAD
.long 0x07 // p_flags = anything | 0x7
dyn:
dyn_strtab:
.quad 0x05 // p_offset = ignored // d_tag = DT_STRTAB
.quad 0x05 // p_vaddr = p_offset // d_val = ignored
dyn_init:
.quad 0x0c // p_paddr = ignored // d_tag = DT_INIT
.quad code - ehdr // p_filesz = ignored // d_val = code
dyn_symtab:
.quad 0x06 // p_memsz = ignored // d_tag = DT_SYMTAB
.quad 0x00 // p_align // d_val = ignored

(And here is an interactive visualisation of the binary)

Testing it:

$ make elf.o
cc    -c -o elf.o elf.S
$ objcopy -O binary elf.o elf.so
$ stat -c "%s" elf.so
136
$ LD_PRELOAD=./elf.so ls
sh-5.0$

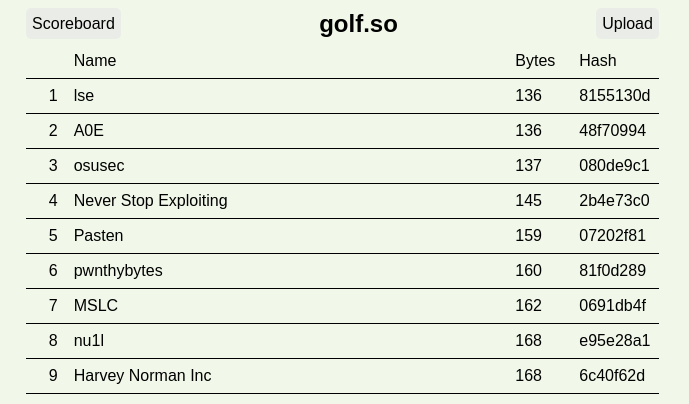

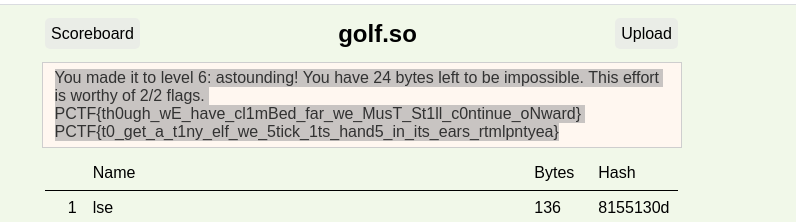

And now on the site:

:)

The end ?

We went from a 15408 byte binary to a 136 byte one. That’s over 100 times smaller.

Is 136 bytes the smallest .so possible for this challenge ?

While we need at least 2 Phdr and 1 Ehdr in the file (sadly we can’t trim their trailing \0) so the minimum size would be min(sizeof(Elf64_Ehdr), 2 * sizeof(Elf64_Phdr)), which is 112 bytes.

However, we have to alias Phrds inside Ehdr so their fields are compatible. The issue is that the 24 first bytes of Ehdr can’t be changed. It leaves us with a size of 24 + 2 * sizeof(Elf64_Phdr) = 136.

One can argue that we can move the PT_LOAD Phdr in first so we use e_version for p_type and so on, but while it makes a valid elf 4 byte smaller, it won’t load because e_phoff aliases with p_offset of the PT_LOAD Phdr, thus ld.so fails on mmap. So this is where the record stands today.
